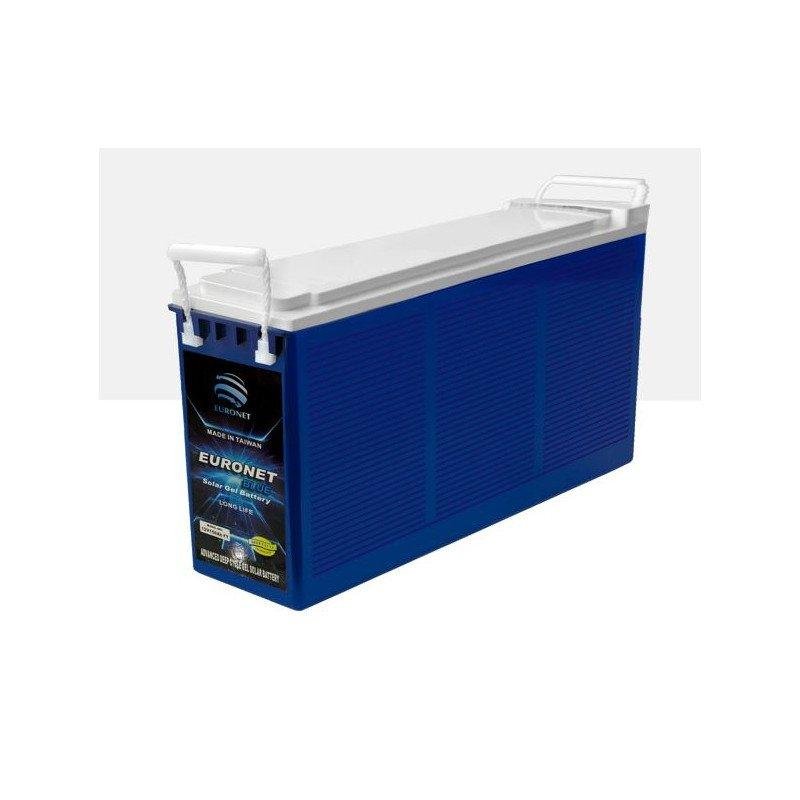

EURONET SOLAR DEEP CYCLE SLIM GEL BATTERY 12V 150AH
PRODUCT SPECIFICATIONS:
- Cells Per Unit: 6
- Voltage Per Unit: 12
- Capacity: 150Ah 10hr-rate to 1.85V per cell 25°C
- Max. Discharge Current: 1000A (5sec)
- Internal Resistance: Approx. 2.6mΩ
- Operating Temperature Range: Discharge: -40°C ~ 50°C, Charge: -20°C ~ 50°C, Storage: -20°C ~ 50°C
- Normal Operating Temperature Range: 25°C±5°C
- Floating Charging Voltage: 13.50 to 13.80V DC/Unit Average at 25°C
- Max. Charging Current: 37.5A
- Equalization and Cycle Service: 14.70 to 15.00V DC/Unit Average at25°C
- Self-Discharge: The batteries can be stored for more than 6 months at 25°C. Please charge battery before using. For high temperature, the time interval will be shorter.
- Terminal: T14
- Container Material: ABS (UL94-HB) Flammability Resistance of UL94-V0 is Available on Request
- Dimension: (L)570x(W)110x(H)290mm
- Product Weight: N.W - 44.5KG / G.W - 45KG
- Application: Solar Systems, UPS Systems, IT Systems, Data Centers, Power Generation Plants, Telecommunication Equipements.
- User Friendly
- Low Maintenance
- High Performance
- Ultra Long Life Service
- High Recovery Capability
- High Charge Acceptability
- No Water Topping Required
- Maintenance-Free Operation
- Low Pressure Venting System
- Non-Spill Sealed Construction
- Low Self-Discharge - Long Shelf Life
- Wide Operating Temperature Range
